Application · Yacht and boat building
The galley.
Where high standards meet tight space.
The passage between galley and saloon is narrow, every kilo counts for displacement, and the cabins are just a bulkhead away. The DishDrawer™ washes at full capacity at half the niche height and pulls forward instead of folding open. In series production on the Hanse 575 and in the Bavaria R series.
410 mm
Installation height, single unit
43 dB(A)
Operating noise
0 mm
Swing clearance in the galley
10–12 m
Boat lengths with series installation
Why this matters
On board, the galley decides how long you want to stay.
On a 12-metre yacht, the galley is the space where the promise of comfort and reality part ways fastest. Anyone anchored in a bay for a week does not want to wash up in salt water.
An appliance that respects installation space, weight and consumption yet still washes at full capacity is no longer an add-on but a feature that makes the difference.
Series installation on board — Double DishDrawer™ behind a customer-supplied front with recessed handles.
Challenge & solution
Six bottlenecks in boat building — and how the DishDrawer™ resolves them.
The points where a conventional 60 cm dishwasher fails on board.
Bauraum
The galley is the tightest space on board
The single drawer installs with 410 mm height and 599 mm width into a standard kitchen block and takes up only half the niche height.
Bewegungsraum
No room for a door panel
The drawer pulls forward instead of folding open. No door panel blocks the passage between galley and saloon.
Gewicht
Every kilo counts for displacement
Compact build instead of full format. [Platzhalter: Gewicht in kg] for your weight and trim calculation.
Noise
The cabin is just a bulkhead away
With 43 dB(A) the drawer runs quietly enough that a wash cycle disturbs no one in the aft cabin.
Autarkie
Tank and battery are the limit
Six place settings per cycle — without sacrificing fresh water for a half-empty machine — crucial for long passages without a marina.
Fit-out quality
The front follows the yacht's interior
Fully integrated behind your front in teak, bamboo or walnut. Operated via Knock-to-Pause — with no visible button.
On-board power & connection
Shore power, generator or inverter.
The DishDrawer™ is a 230-volt appliance. On board it runs on shore power, a generator or an inverter from the on-board system — all three are implemented at our series partners in boat building.
When sizing the inverter, the inrush current of the heating phase is decisive. We handle this coordination on a per-project basis with your electrical engineering team.
Supply voltage
220–240 V
Mains frequency
50 Hz
Current
10 A
Water pressure
100–1000 kPa
Water inlet
3/4″ BSP (20 mm)
Rec. inverter
[Platzhalter: Leistung]
Inrush current
[Platzhalter: A]
Water consumption
[Platzhalter: l je Zyklus]
Bauformen
Three variants for three boat sizes.
Dimensions in millimetres (height × width × depth), all variants for a customer-supplied furniture front.
| Model | Configuration | Dimensions H×W×D | Capacity | Typische Bootsklasse |
|---|---|---|---|---|
| DD60SHI9 | Einzel | 410×599×571 | 6 place settings | Motorboot/Segelyacht ab 10 m |
| DD60SHTI9 | Einzel, hohe Ausf. | 454×599×571 | 6 place settings, plates 310 mm | Galley with larger dishware |
| DD60DHI9 | Doppel | 820–880×599×571 | 12 place settings, 2×6 | Yacht ab 12 m, Charter |
In the double unit, both drawers run independently. In charter operation this covers the changeover between two crews. Knock-to-Pause is available on all three variants.
Does one of the variants fit your galley?
CAD files, dimensioned drawings and model-specific data sheets are in the Design Kit — free of charge.
Referenzen
Already on board — sailing and motor boats.
Two series installations in different boat classes, both behind a customer-supplied furniture front.

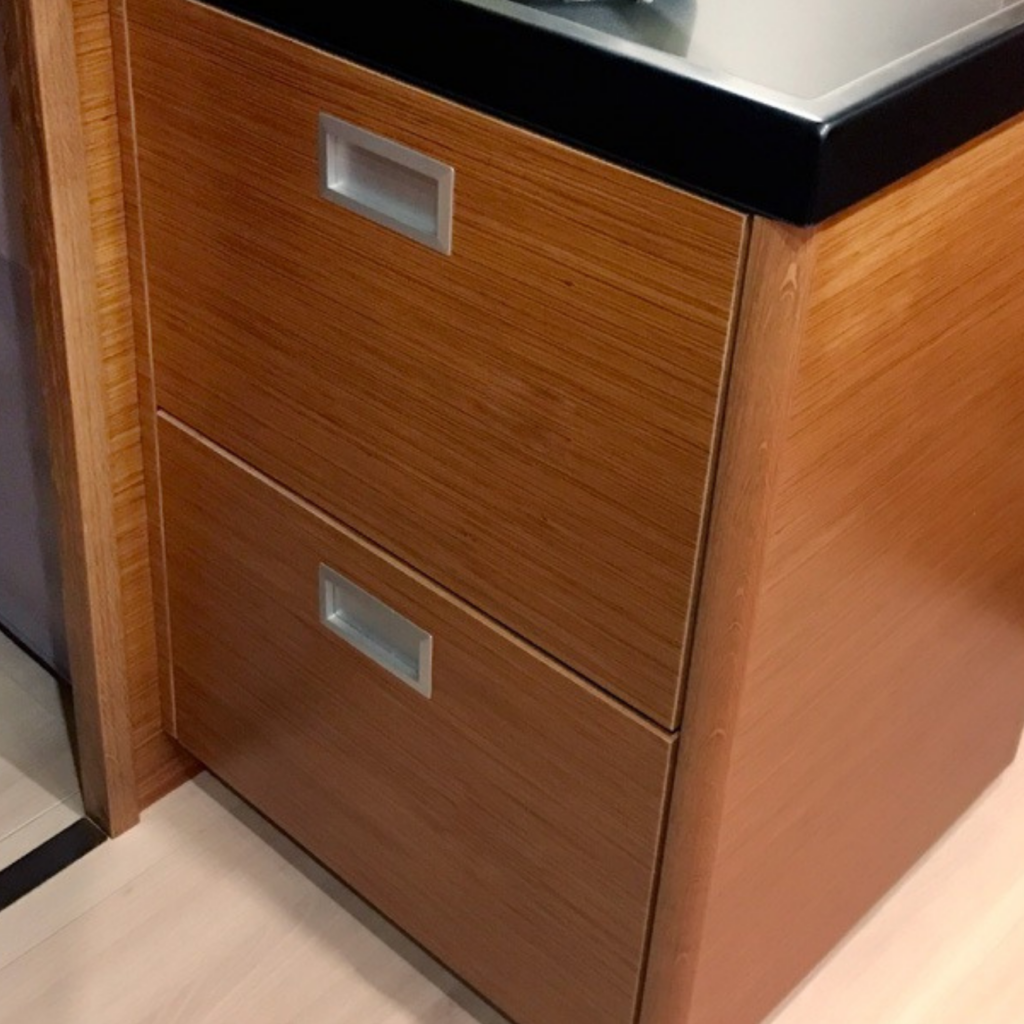

12-Meter-Segelyacht · Serienintegration
Hanse 575
Double DishDrawer™ in the galley, fully integrated with recessed handles. Two independent drawers for longer passages with a full crew.

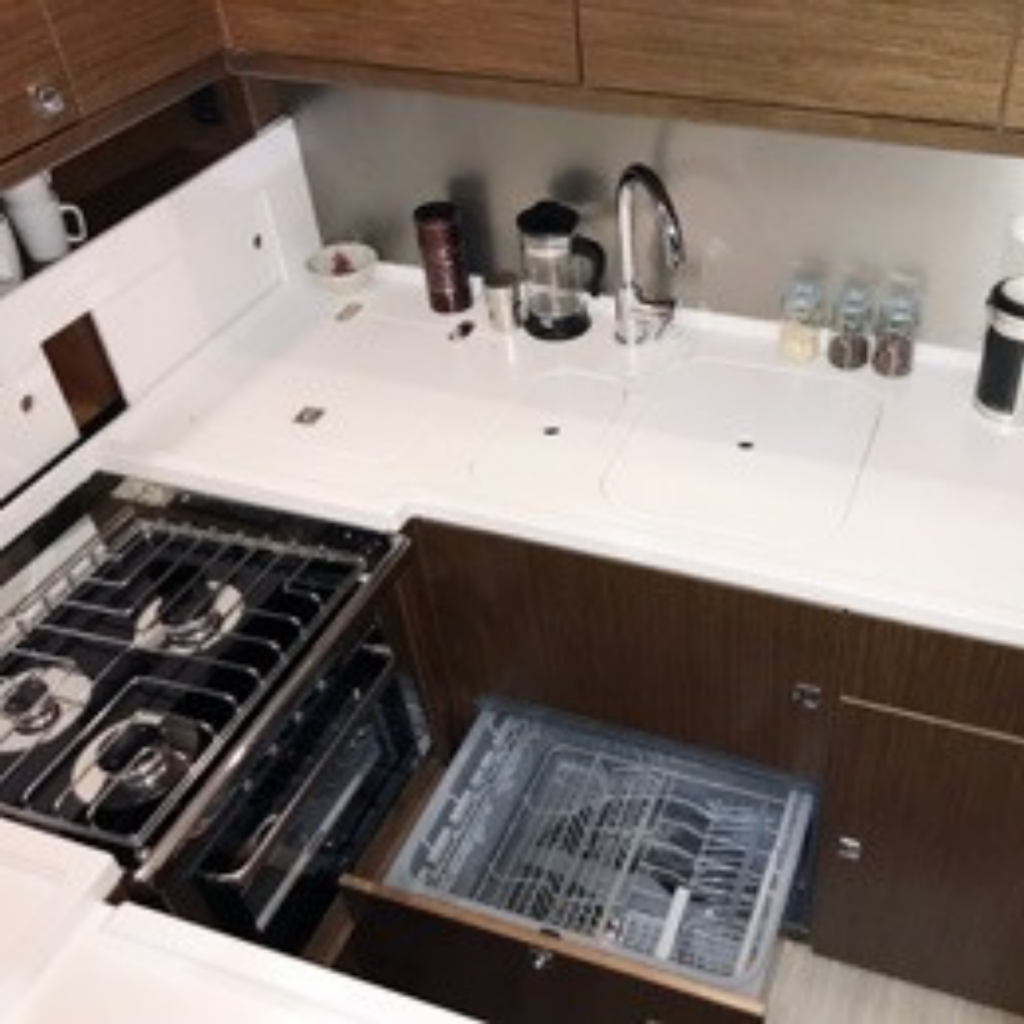

10-Meter-Motorboot · Serienintegration
Bavaria R-Baureihe
Single DishDrawer™ right next to the hob in the kitchen block — full-capacity washing in a footprint that would otherwise only have served as storage.
Frequently asked engineering questions
What design engineers want to know first.
Whatever is not covered here, we clarify in conversation.
Does the DishDrawer™ fit a standard kitchen block on board?
At 599 mm installation width, the single drawer fits common 60 cm furniture layouts; at 410 mm height, storage space remains below it.
How does the appliance behave under heel and in rough seas?
[Platzhalter: Angaben zu zulässiger Krängung, Befestigung und Ladungssicherung im Bootseinbau.] Zu Befestigung und Einbaulage beraten wir projektbezogen.
Is the appliance approved for use in salt-air conditions?
[Platzhalter: Angaben zu Korrosionsschutz, Materialien und etwaigen Marine-Freigaben.] Der Serieneinbau erfolgt vollintegriert hinter der Möbelfront.
Is the on-board power enough, or is shore power needed?
Operation via an inverter or generator is possible and implemented at series partners. The decisive factor is sizing for the inrush current.
What does service look like for the end customer?
coolHouse runs sales and service for the DACH region with more than 80 authorised workshops. For boats outside the DACH region, we arrange service handling on a per-project basis.
Can we get a sample unit?
Yes. After the initial technical assessment, we provide a sample unit for installation and validation on board.
